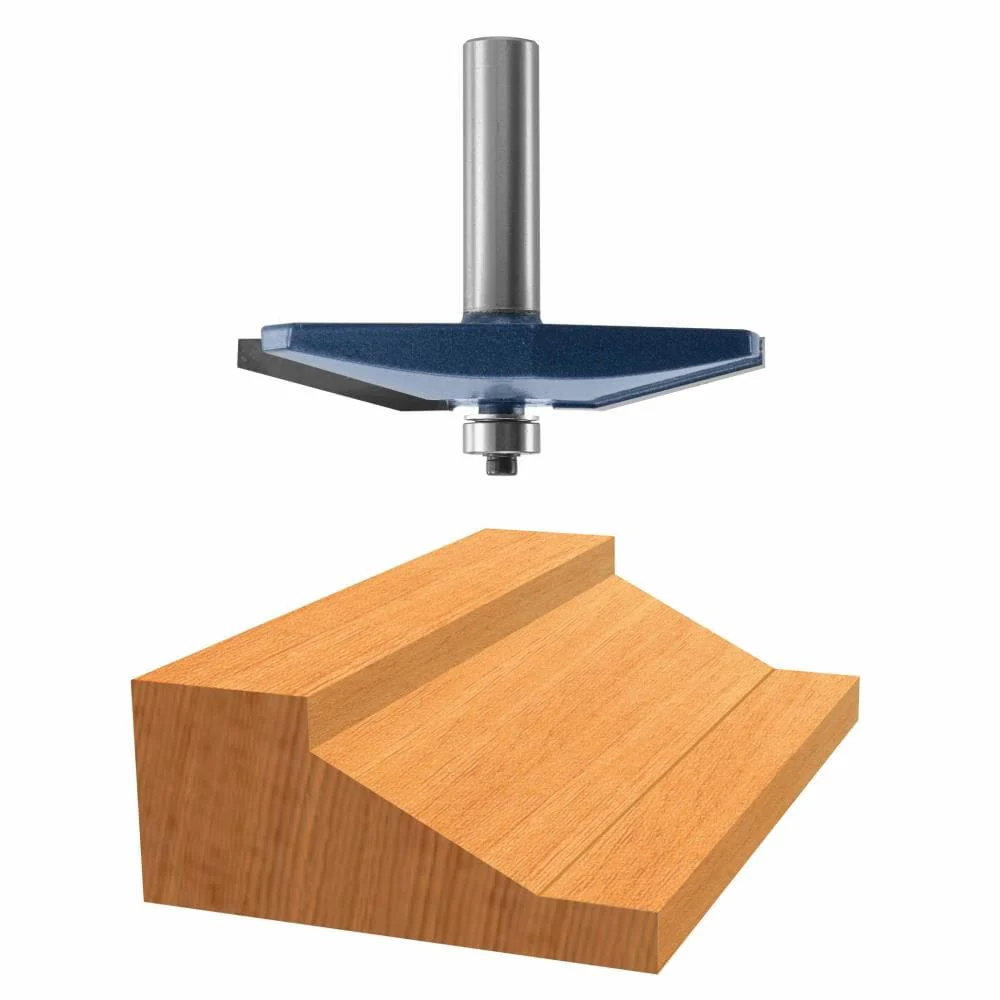

Bosch 3-3/8-in Carbide-Tipped Horizontal Raised Panel Router Bit, 1/2-in Shank
3-3/8-in Horizontal Raised Panel Router Bit
Bosch’s carbide-tipped raised panel bit delivers clean, traditional door and panel profiles on a router table. Micrograin carbide and a hardened steel shank ensure sharpness and durability for long-lasting performance.
Key Features:
- Raised Panel Cuts: Produces classic profiles on straight or curved panel edges
- Kickback Control: Control-cut design helps minimize kickback for safer operation
- Durable Carbide: Micrograin carbide tips resist wear for a longer service life
- Router Table Use: Designed for router table applications only with compact bearing pilot
- Optimized Dimensions: 3-3/8-in overall diameter, 1/2-in shank; 3/4-in minimum panel thickness
Specifications Table:
| Specification | Details |
|---|---|
| Overall Diameter | 3-3/8-in |
| Bit Shank Diameter | 1/2-in |
| Cutting Edge Length | 1/2-in |
| Bearing Diameter | 1/2-in |
| Overall Length | 2.375 in |
| Bit Angle | 15 degrees |
| Bit Material/Finish | Carbide-tipped |
| Bit Style | Horizontal raised panel |
| Number of Flutes | 1 |
| Minimum Recommended Panel Thickness | 3/4 in |
| Use | Router table only |
| Pilot | Compact ball-bearing pilot |
| Warranty | None |
| Prop 65 Warning (CA) | No |
| UNSPSC | 27112800 |
Frequently Asked Questions (FAQ):
Q: Can I use this bit in a handheld router?
A: No. It is designed for use with a router table only.
Q: What is the recommended minimum panel thickness?
A: 3/4 inch.
Q: What shank size does this bit use?
A: 1/2-inch shank.
Q: How is kickback reduced?
A: The control-cut design helps minimize kickback during cuts.
Q: What materials are the cutting edges made from?
A: Micrograin carbide tips for superior wear resistance and long life.
Craft a Heritage-Grade Panel Profile
This bit sculpts cabinetry panels with a tailored, architectural edge that feels both classic and crisp. The broad 3-3/8-inch diameter carves a confident reveal, while the carbide-tipped edge keeps lines razor-clean. Pair its traditional slope with quarter-sawn oak or painted shaker doors for elevated texture and shadow play. It’s a small tool with a big impact—essential for cabinetry that reads custom and luxurious.
Upgrade your router table with this Bosch bit and create refined, raised panel profiles with pro-level precision.
