Milwaukee M12 23GA Cordless Pin Nailer Kit with Detail Sander & CP2.5 Battery
A compact, cordless 23-gauge pin nailer bundled with an M12 FUEL orbital detail sander and a REDLITHIUM High Output CP2.5Ah battery for precise trim work and fine woodworking. The nitrogen air spring delivers consistent depth while the tool-free adjustments, dry-fire lockout, and ergonomic design enhance control in tight spaces.
Key Features:

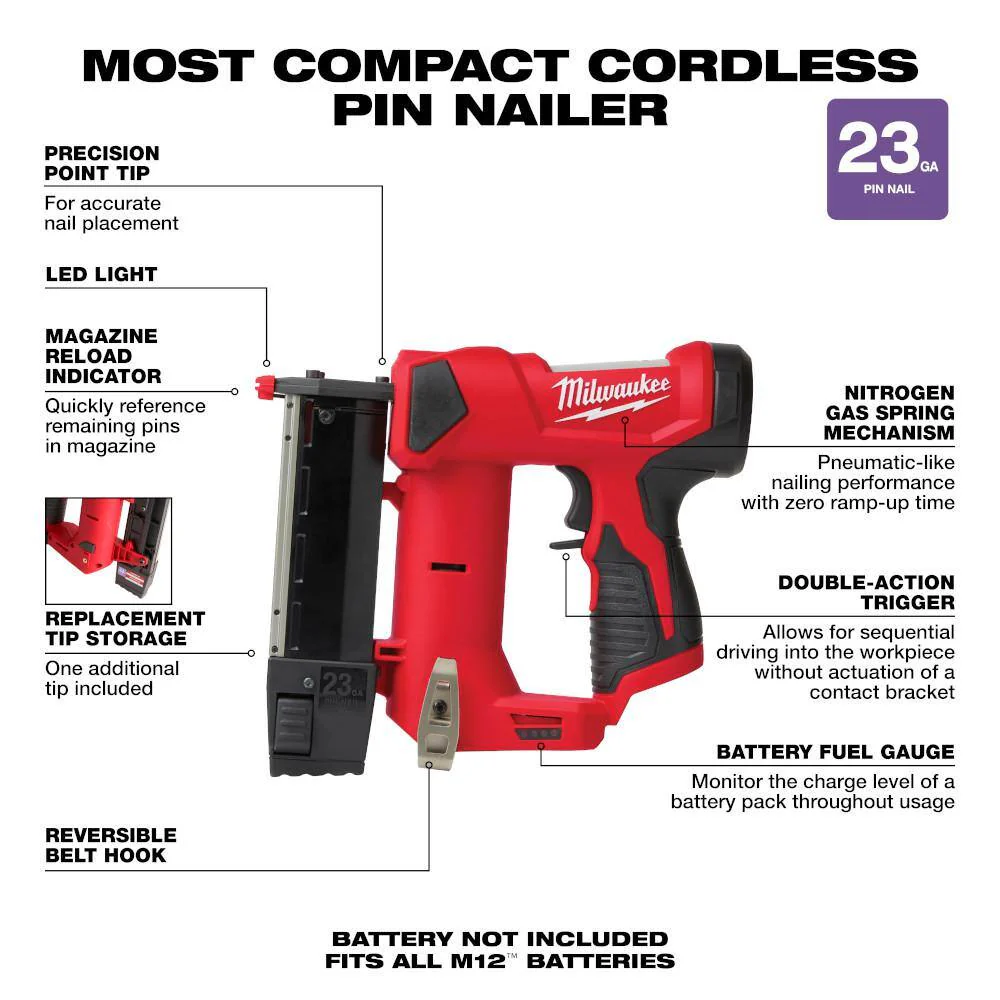

- Cordless Precision: 23GA pin nailer runs on M12 power with nitrogen air spring for consistent depth in hard or soft woods.
- Clean, Safe Operation: Dry-fire lockout, magazine reload indicator, LED and reversible belt hook protect workpieces and boost productivity.
- Fast Adjustments: Tool-free drive depth and double‑action trigger for accurate sequential placement.

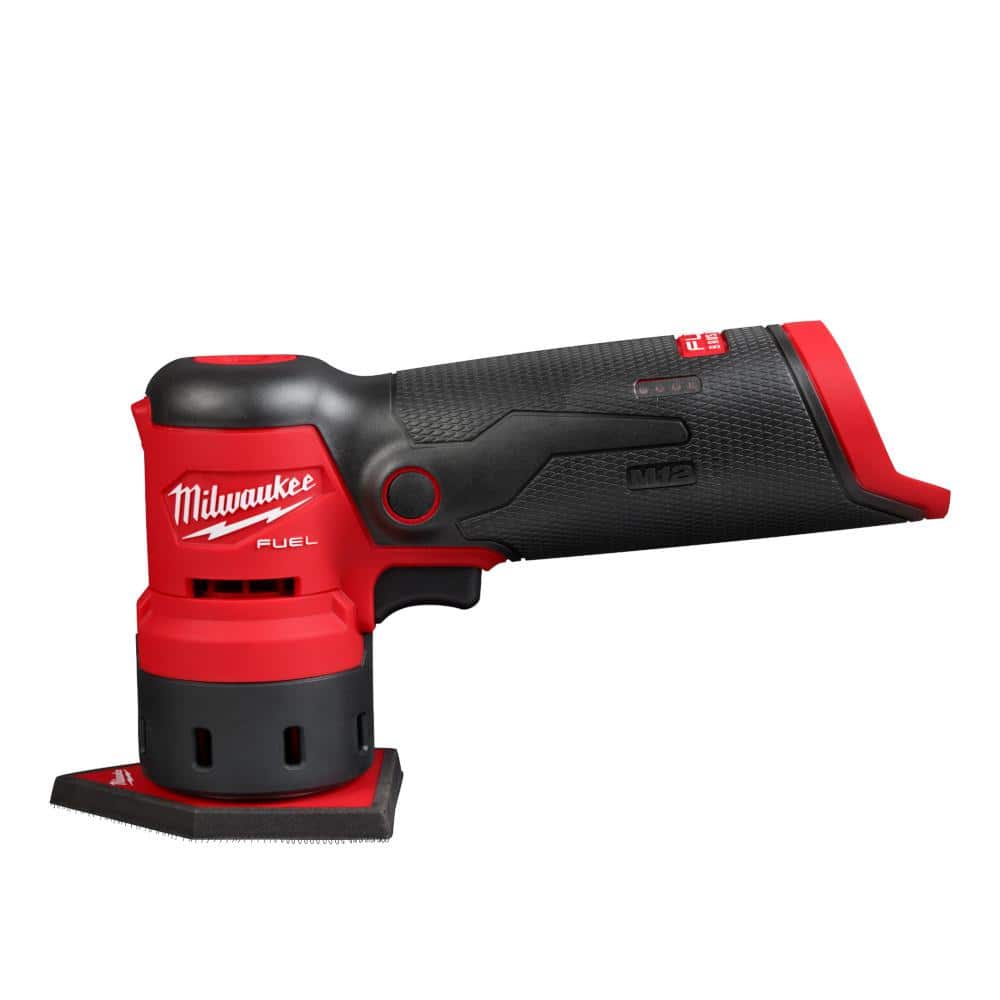

- Detail Sanding Included: M12 FUEL orbital detail sander with 4-mode speed control and variable speed trigger for refined finishes.

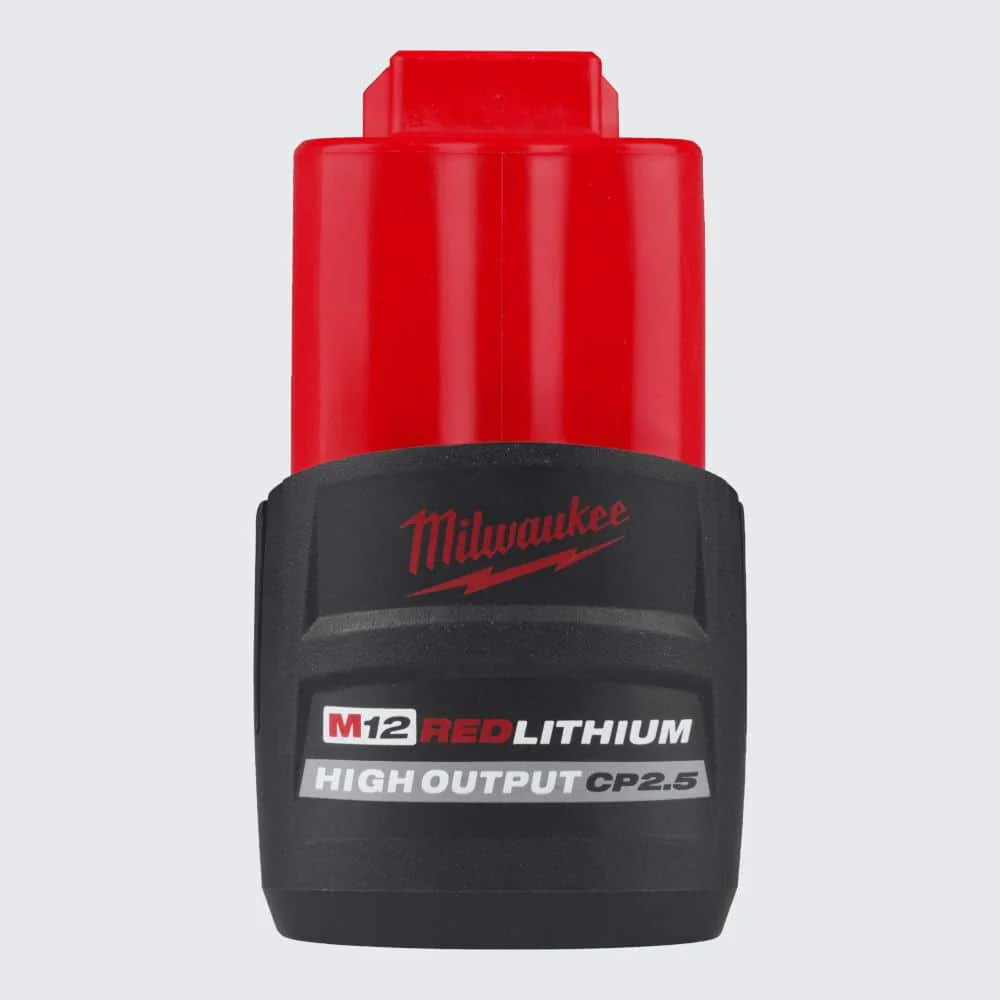

- High-Output Battery: REDLITHIUM CP2.5 pack delivers 25% more power and runs cooler for longer runtime.
Specifications Table:
| Specification | Details |
|---|---|
| System Voltage | 12V (M12) |
| Nail Gauge | 23 gauge |
| Nail Length Range | 1/2 in. to 1-3/8 in. |
| Collation Angle | 0° (Straight) |
| Magazine Capacity | 110 |
| Firing Mode | Single Sequential; double‑action trigger |
| Power Type | Cordless, battery powered |
| Motor Type | Brushed (pin nailer) |
| Tool Weight | 3.3 lb |
| Loading Type | Strip |

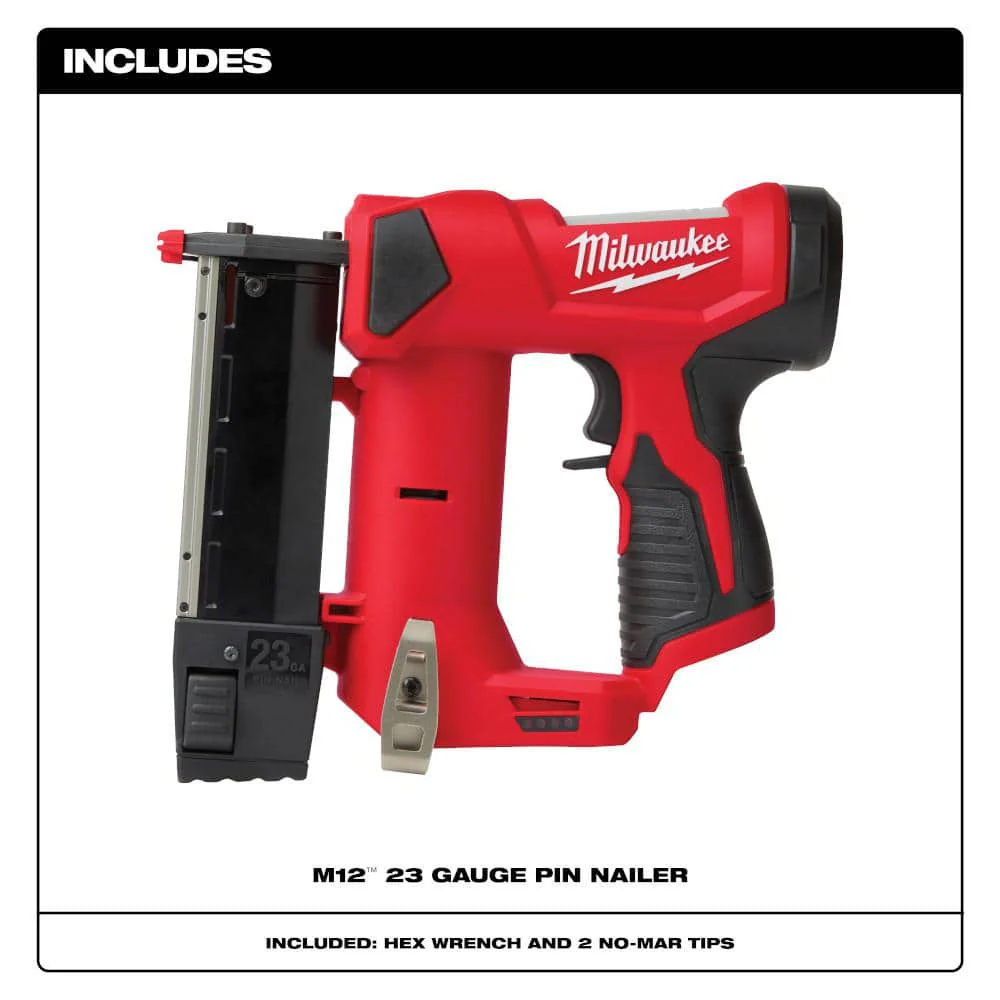

| Included Components | M12 23GA Pin Nailer (2540-20), M12 FUEL Orbital Detail Sander (2531-20), M12 REDLITHIUM High Output CP2.5Ah Battery (48-11-2425); hex wrench; 2 no‑mar tips |
| Charger Included | No |
| Batteries Included | 1 (CP2.5Ah) |
| Dry-Fire Lockout | Yes |
| Magazine Reload Indicator | Yes |
| Depth Adjustment | Tool-free |
| Worklight | LED |
| Belt Hook | Reversible |
| Detail Sander Orbit | Orbital motion (1.5mm) |
| Detail Sander Speed Control | 4-mode 4,000–14,000 OPM with variable speed trigger |
| Warranty | 5-year limited (tools) |
| Product Dimensions (Pin Nailer) | Depth 8.7 in.; Height 7.7 in.; Width 2.6 in. |
Frequently Asked Questions (FAQ):
Q: Can it drive pins into hardwood?
A: Yes. The nitrogen air spring mechanism maintains power for consistent depth in hardwoods.
Q: How many pins per charge can I expect?
A: Up to about 750 pins with the included CP2.5Ah battery, depending on material and pin length.
Q: Is a charger included?
A: No. This bundle includes the nailer, orbital detail sander, and a CP2.5Ah battery; charger is sold separately.
Q: What pin sizes does it accept?
A: 23-gauge pins from 1/2 in. to 1-3/8 in., straight collation.
Q: What warranty is provided?
A: Milwaukee 5-year limited power tool warranty.
Precision Finish, Studio-Grade Detail
This compact nailer and detail sander duo elevates millwork into a tailored statement. The streamlined silhouette and precision point tip create nearly invisible joins that read as couture craftsmanship. Pair it with pale oak trim and satin paint for a gallery-clean finish, using the sander to feather edges to perfection. It’s the discreet, hard‑working kit that makes luxury detailing feel effortless.
AI Review Summary:
Reviews of the 2540-20 pin nailer highlight its compact size, clean pin holes, and reliable depth in hardwoods; users appreciate the dry‑fire lockout and precision tip. Some note occasional jam clearing and that balancing can feel nose-heavy with larger batteries. The M12 detail sander earns praise for control in corners and finish quality, with a few comments that dust collection is minimal and higher speeds can cause vibration on thin stock. Quotes: “Holes are nearly invisible—perfect for trim touch‑ups,” “Surprisingly powerful for 23-gauge,” and “Great for corners; wish it came with a charger.”
Finish faster with flawless results—add this Milwaukee M12 23GA Pin Nailer Kit to your cart today.
