Rev-A-Shelf ML Series Heavy-Duty Mixer Lift with Soft-Close, 11-3/4 in W x 20 in D Maple Shelf
Rev-A-Shelf ML Series Heavy-Duty Mixer Lift with Soft-Close, 11-3/4 in W x 20 in D Maple Shelf

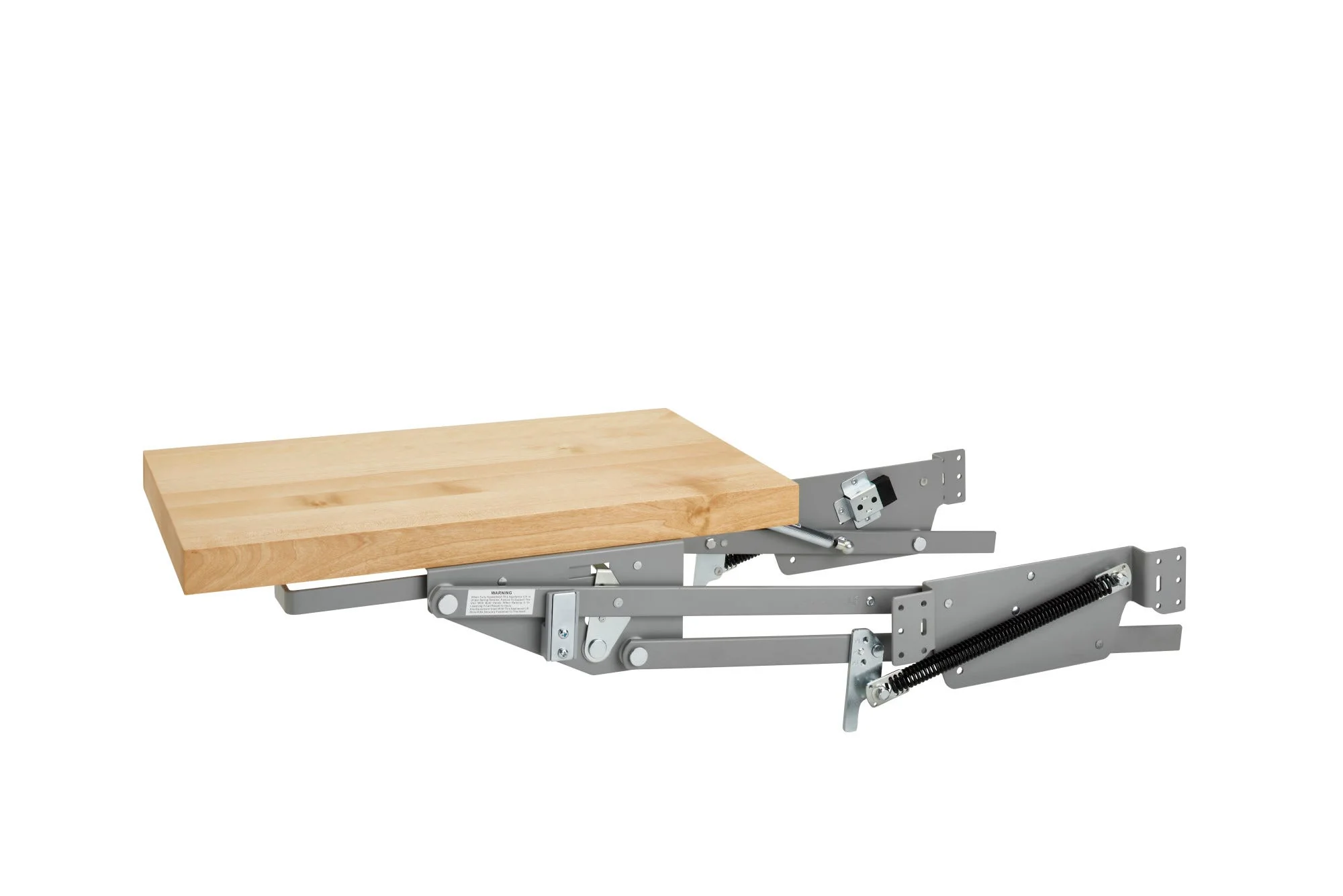

Heavy-Duty Soft-Close Mixer Lift with Maple Shelf
Rev-A-Shelf’s ML Series mixer lift effortlessly raises your stand mixer to countertop height and tucks it away when not in use. The heavy-duty, soft-close metal mechanism includes a solid maple shelf and adjustable spring tension to handle appliances up to 60 lb, making it ideal for full-height base cabinets.
Key Features:

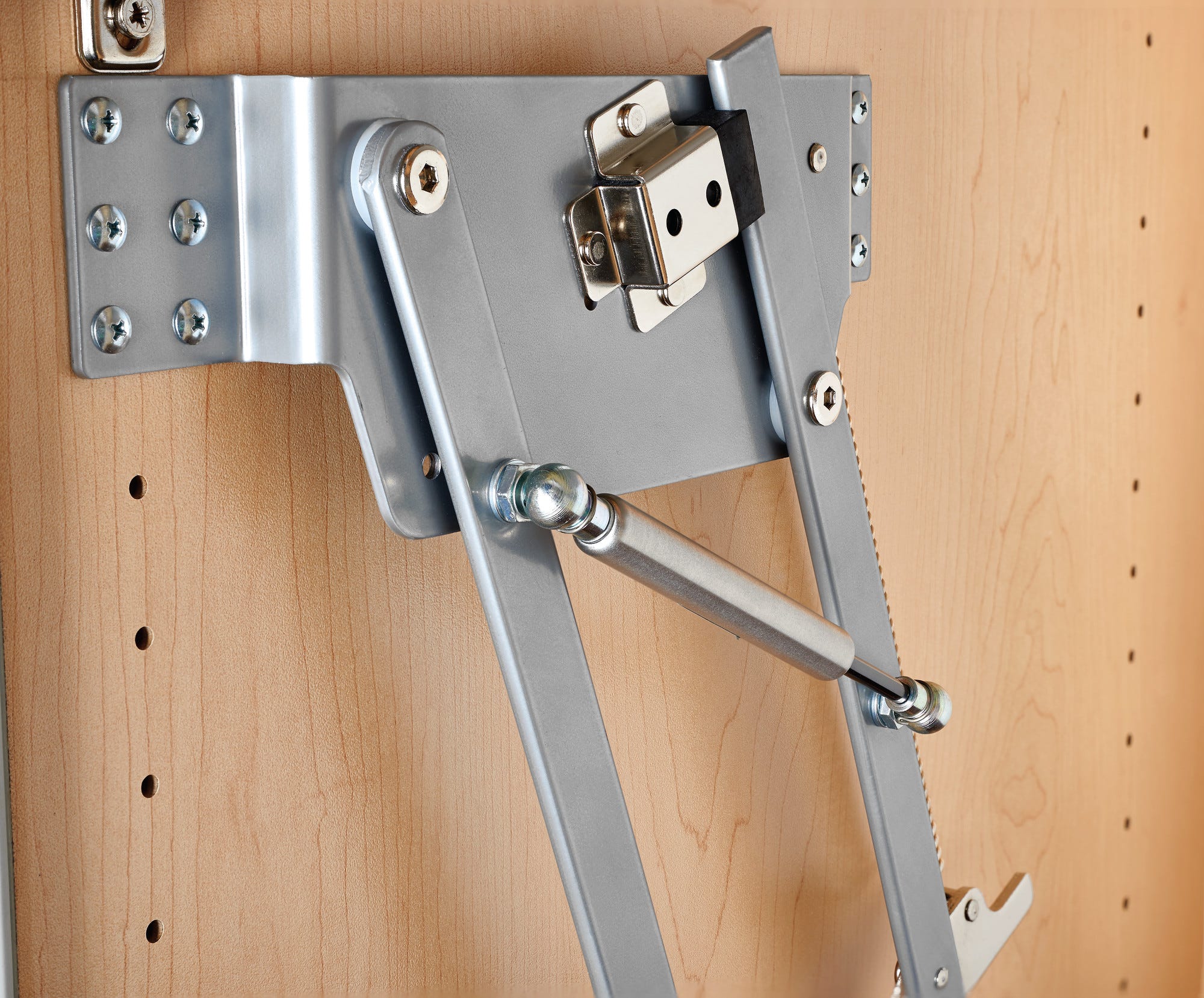

- Soft-Close Lift Mechanism: Smooth, controlled descent with built-in shock dampeners for safety.
- Heavy-Duty Capacity: Adjustable spring tension supports appliances from 0–60 lb.
- Solid Maple Shelf Included: 11-3/4 in W x 20 in D x 1-3/8 in H shelf with clear polyurethane finish.
- Side-Mounted Installation: Powder-coated steel frame mounts to cabinet sides; fits full-height 24 in deep cabinets.
- Max Appliance Height: Accommodates mixers 17 in to 18-3/8 in tall; requires minimum 15 in cabinet opening.

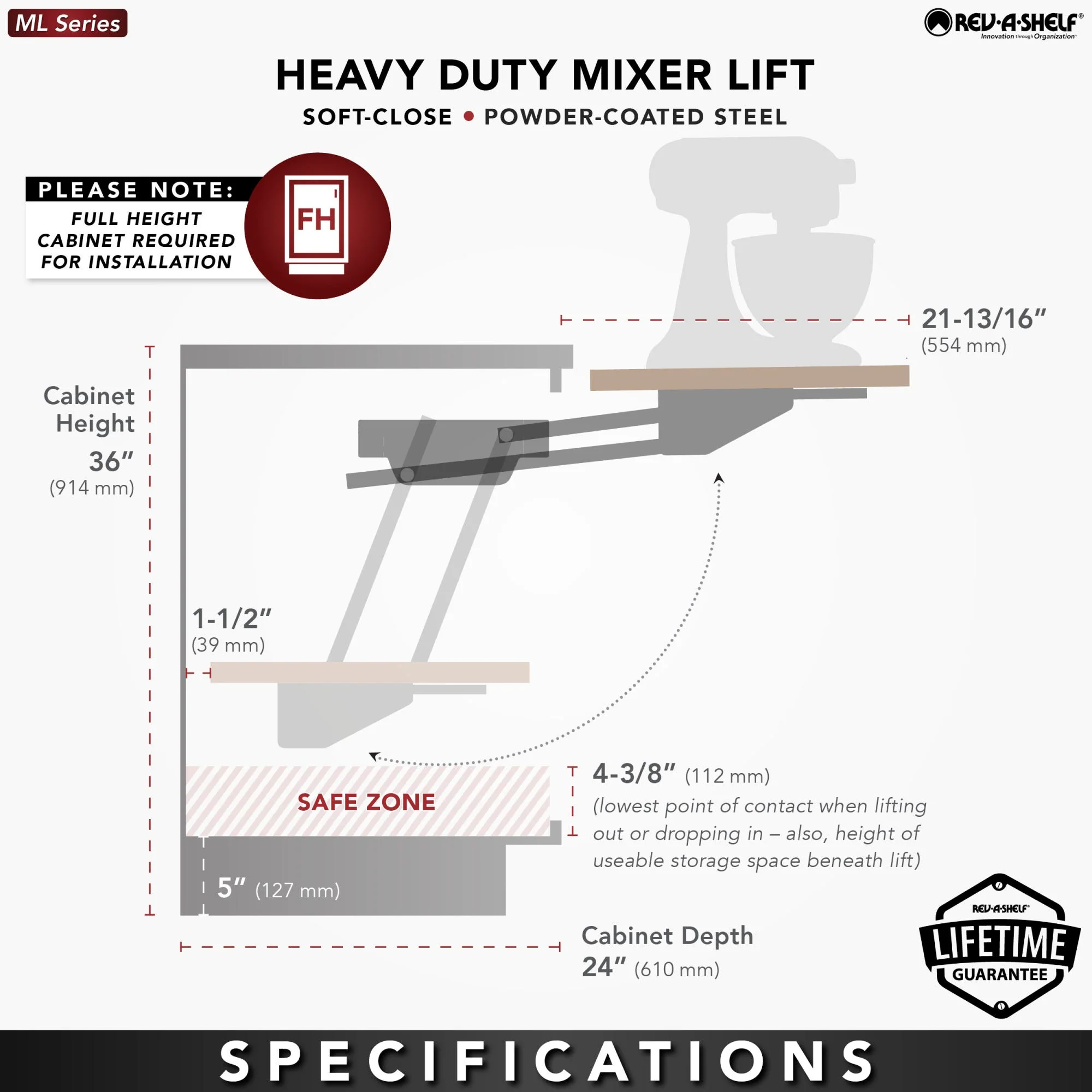

Specifications Table:
| Specification | Details |
|---|---|
| Series | ML Series |
| Included Shelf Dimensions | 11-3/4 in W x 20 in D x 1-3/8 in H |
| Construction | Heavy-duty metal frame with solid bottom surface; powder-coated steel mechanism |
| Finish | Clear polyurethane finish on maple shelf |
| Number of Shelves | 1 |
| Installation Type | Cabinet side mounted; full-height cabinet required |
| Cabinet Depth Requirement | 24 in (610 mm) |
| Minimum Cabinet Opening | 15 in (381 mm) |
| Maximum Appliance Height | 17 in to 18-3/8 in (432–467 mm) |

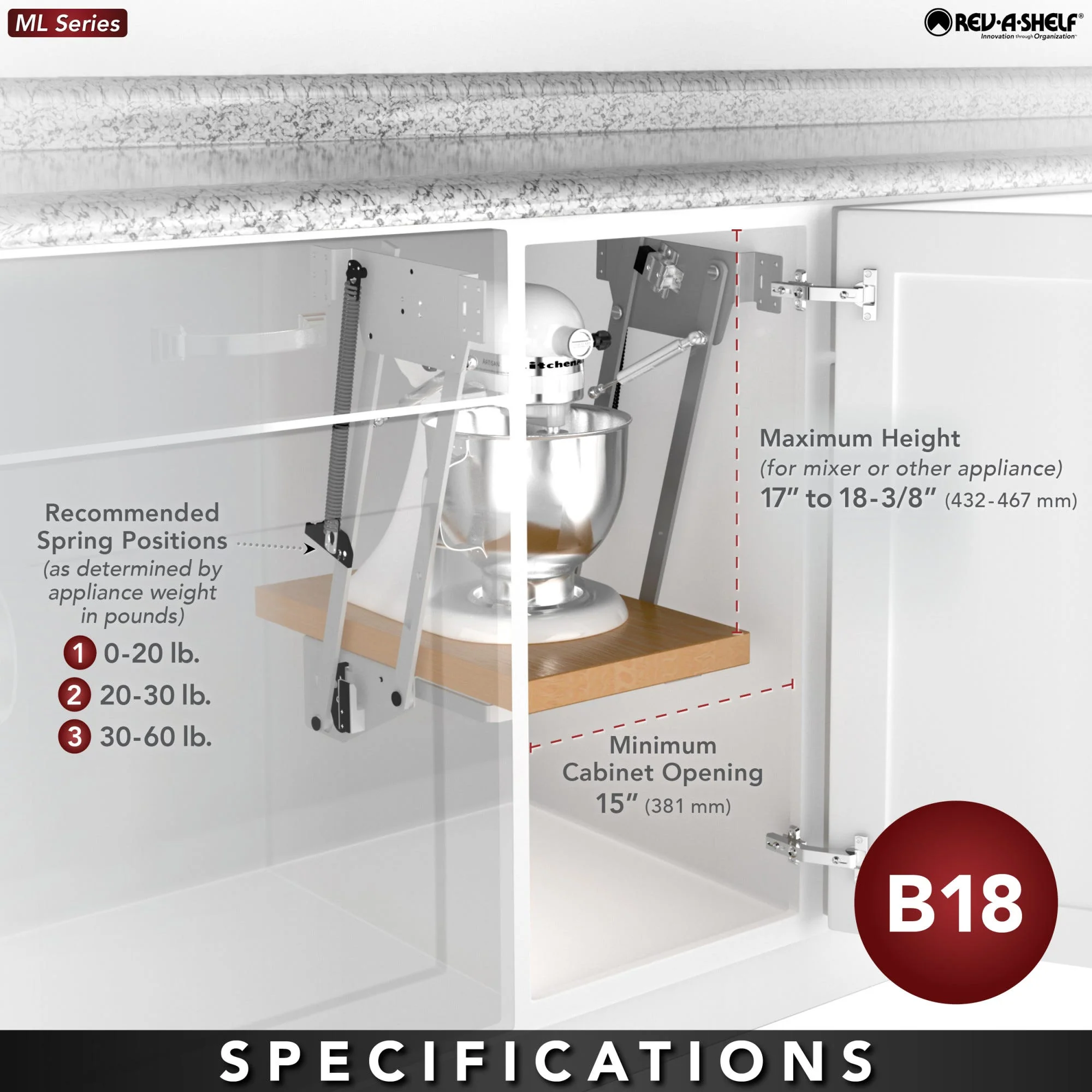

| Weight Capacity | Up to 60 lb; adjustable spring positions for 0–20 lb, 20–30 lb, 30–60 lb |
| Soft-Close | Yes; built-in shock dampeners |
| TSCA Title VI Compliant | Yes |
| Door Mountable | No |
| Country of Origin | China |
Frequently Asked Questions (FAQ):
Q: What size cabinet do I need?
A: A full-height base cabinet with 24 in depth and at least a 15 in minimum opening is required.
Q: What are the shelf dimensions?
A: The included maple shelf measures 11-3/4 in W x 20 in D x 1-3/8 in H.
Q: How much weight can it lift?
A: It is designed for appliances up to 60 lb with adjustable spring positions for 0–20, 20–30, and 30–60 lb ranges.
Q: Is the unit door-mountable?
A: No, it is not door mountable; it mounts to the cabinet sides.
Q: Does it include soft-close?
A: Yes, the ML Series features a soft-close mechanism with built-in shock dampeners.
Concealed Power, Elevated Craft
This mixer lift is a seamless ballet of form and function, bringing your culinary workhorse to counter height with a whisper-soft glide. The solid maple shelf adds a warm, crafted note against sleek powder-coated steel. Style it with a handsome stand mixer and a linen towel for a sculptural moment that stows away in seconds. It’s the quiet luxury your kitchen deserves.
Upgrade your base cabinet with this soft-close mixer lift and enjoy effortless access to your heaviest kitchen tools today.
