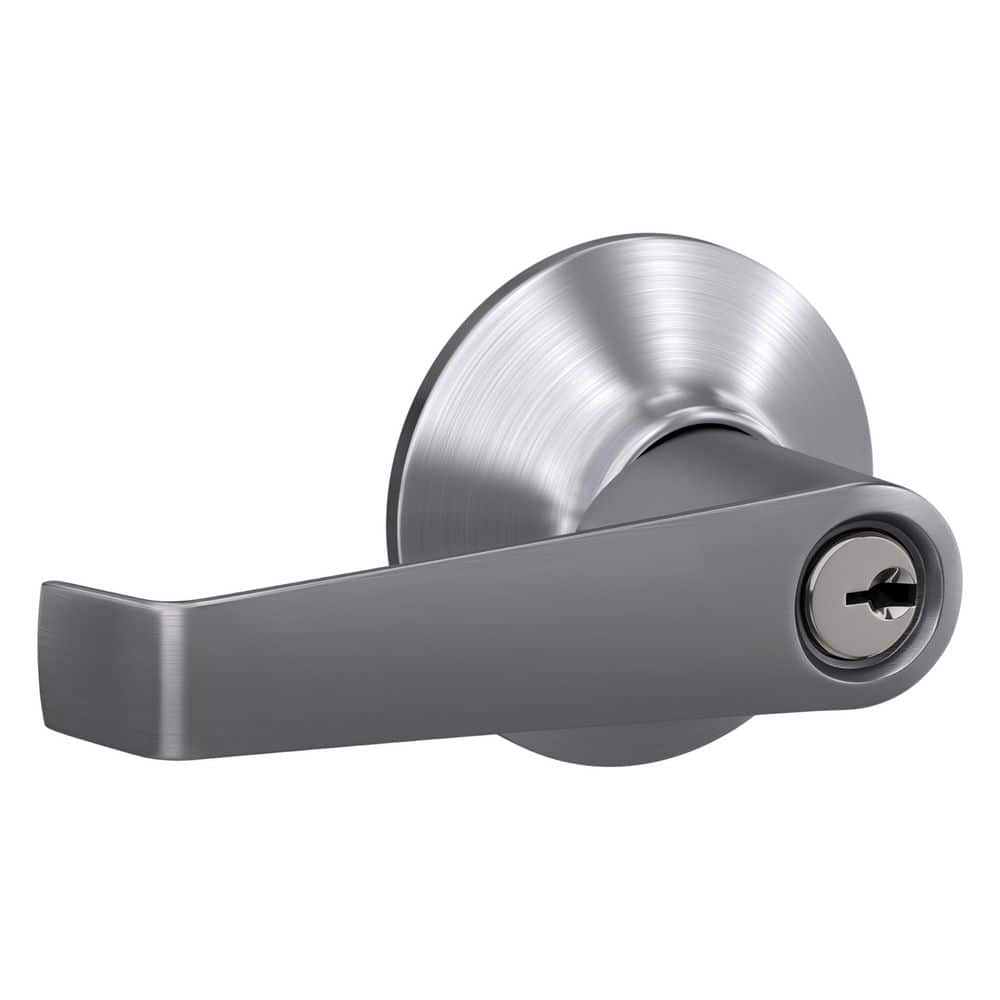

Schlage F80 Elan Satin Chrome Light Commercial Storeroom Keyed Lever (Universal)
Schlage Elan Satin Chrome Storeroom Keyed Lever
The Schlage Elan F80 storeroom lever delivers reliable, Grade 2 security in a sleek satin chrome finish. Built with an all‑metal chassis and universal handing, it installs easily on standard doors for light commercial or residential use.
Key Features:
- Storeroom Function: Exterior opens by key only; interior lever always unlocked for quick egress
- Durable Construction: All‑metal chassis with BHMA Grade 2/AAA rated security, durability and finish
- Universal Fit: Adjustable backset and reversible handing for left or right doors; fits 1-3/8 in. to 1-3/4 in. thick doors
- Easy Installation: Self-aligning screw holes and included hardware for hassle-free setup
- ADA Compliant Design: Straight lever style meets accessibility requirements
Specifications Table:
| Specification | Details |
|---|---|
| Function | Storeroom (exterior by key only; interior always unlocked) |
| Finish | Satin Chrome (626) |
| Style | Elan lever; Classic/straight lever style |
| Backplate Shape | Round backplate |
| Commercial/Residential | Residential / Light Commercial |
| Door Handing | Universal, reversible left/right |
| Lock Type | Keyed, mechanical |
| Keyway | C keyway |
| Number of Pins | 5-pin |
| Security/ANSI Grade | ANSI/BHMA Grade 2 (AAA) |
| Material | Metal; all‑metal chassis |
| Lever Material | Metal |
| Features | Adjustable backset, easy installation, rekeyable |
| Included | Hardware, installation instructions, self-guiding screws; 2 keys |
| Interior/Exterior | Interior use |
| Backset Size | Adjustable 2-3/8 in. or 2-3/4 in. |
| Door Thickness | Fits 1-3/8 in. to 1-3/4 in. |
| Bore Hole Diameter | 1 in. |
| Cross Bore Diameter | 2.125 in. |
| Projection | 2.4 in. |
| Lever Grip Length | 4.42 in. |
| Housing/Rose Diameter | 2.75 in. |
| Strike | Square corner; Strike height 2.25 in., width 1.63 in. |
| Throw Length | 0.5 in. |
| Product Weight | 1.85 lb |
| Certifications | ADA Compliant; UL fire rated up to 3 hours |
| Warranty | Limited lifetime mechanical and finish warranty |
Frequently Asked Questions (FAQ):
Q: What doors will this lever fit?
A: Fits standard doors 1-3/8 in. to 1-3/4 in. thick with 2-3/8 in. or 2-3/4 in. backsets; single bore installation.
Q: Is the latch adjustable?
A: Yes, the universal latch adjusts to 2-3/8 in. or 2-3/4 in. backsets and includes both radius and drive-in faceplates.
Q: How secure is it?
A: It meets ANSI/BHMA Grade 2 standards and features an all‑metal construction for enhanced security and durability.
Q: Is it handed?
A: No—it's universal and works with both left- and right‑handed doors.
Q: What keys and keyway are included?
A: Includes 2 keys and uses a C keyway; 5‑pin cylinder and is rekeyable.
Streamlined Security in Satin Chrome
Elan’s crisp, linear lever brings a refined modernity to any entry, its satin chrome finish catching light with quiet confidence. The minimalist round rose and straight grip lend a tailored silhouette that complements contemporary millwork. Pair it with cool-toned hardware and matte black accents for balanced contrast. It’s a polished essential that elevates everyday thresholds with effortless sophistication.
Secure your space in style—add the Schlage Elan storeroom lever to your cart today.
