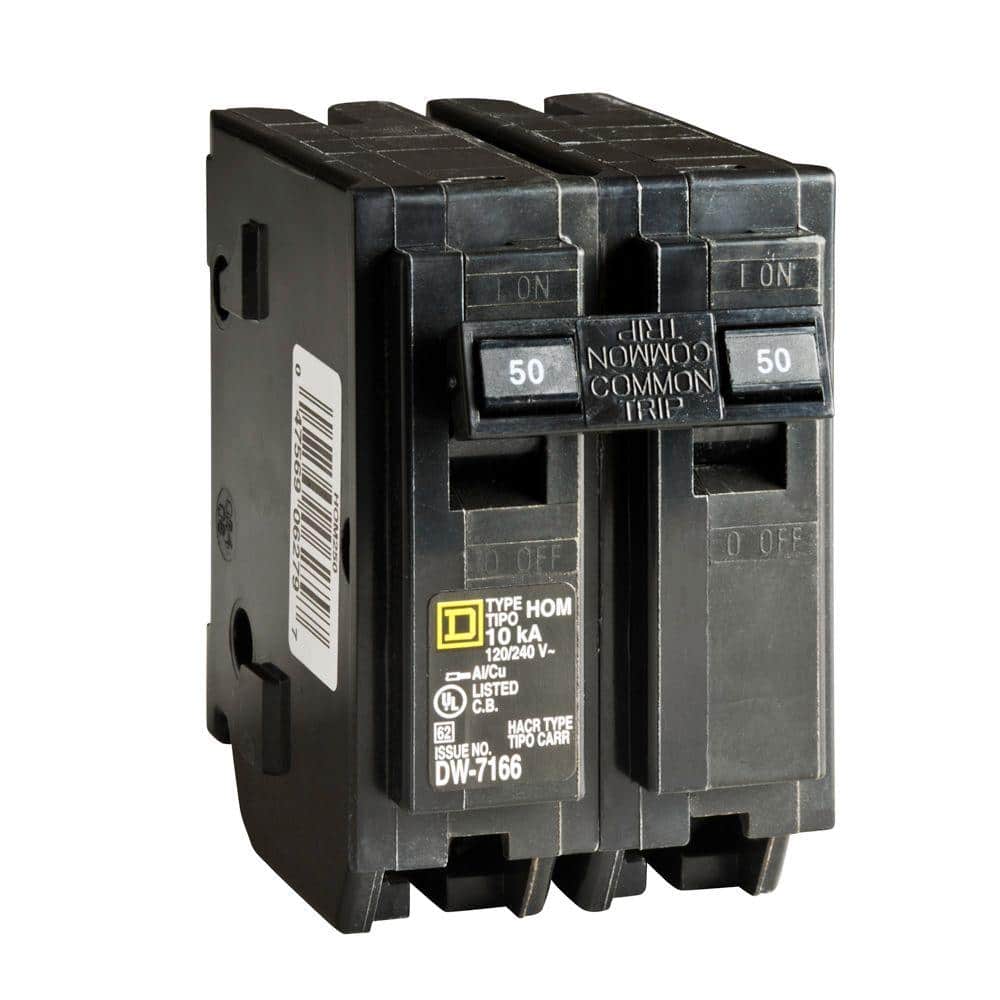

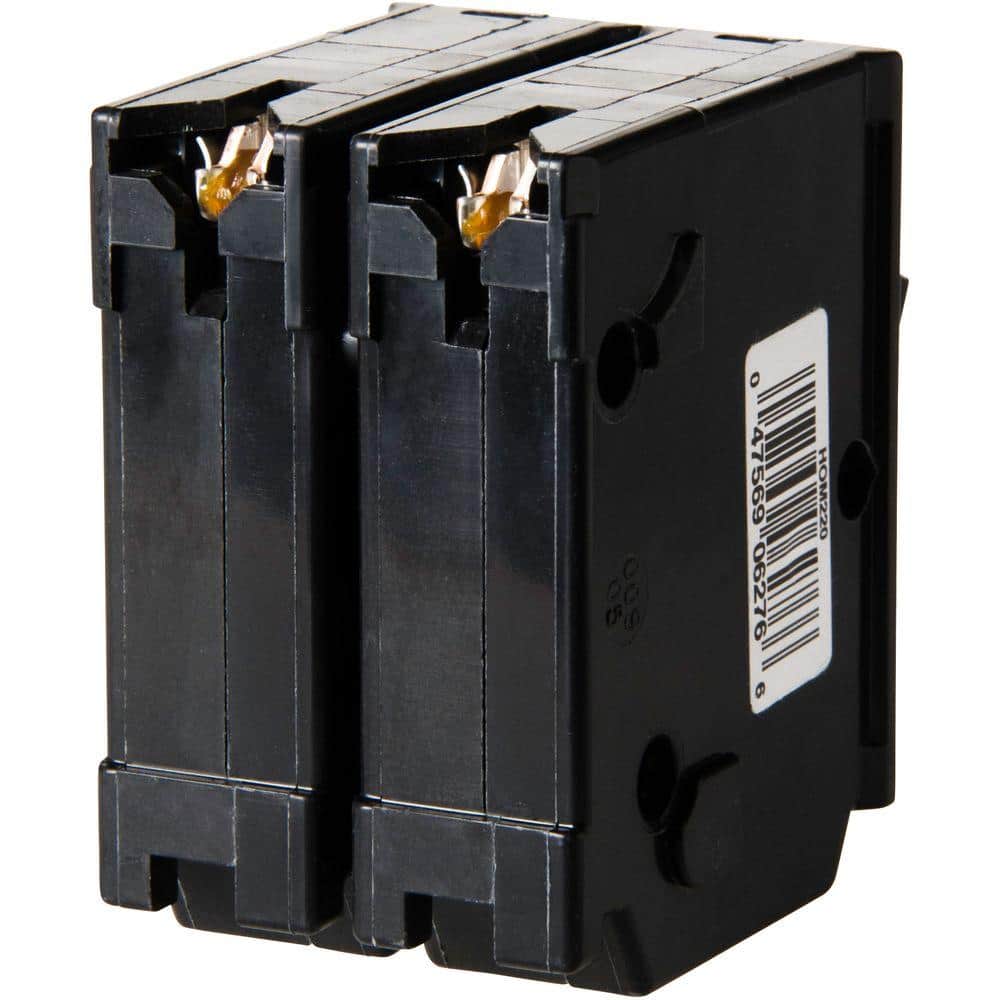

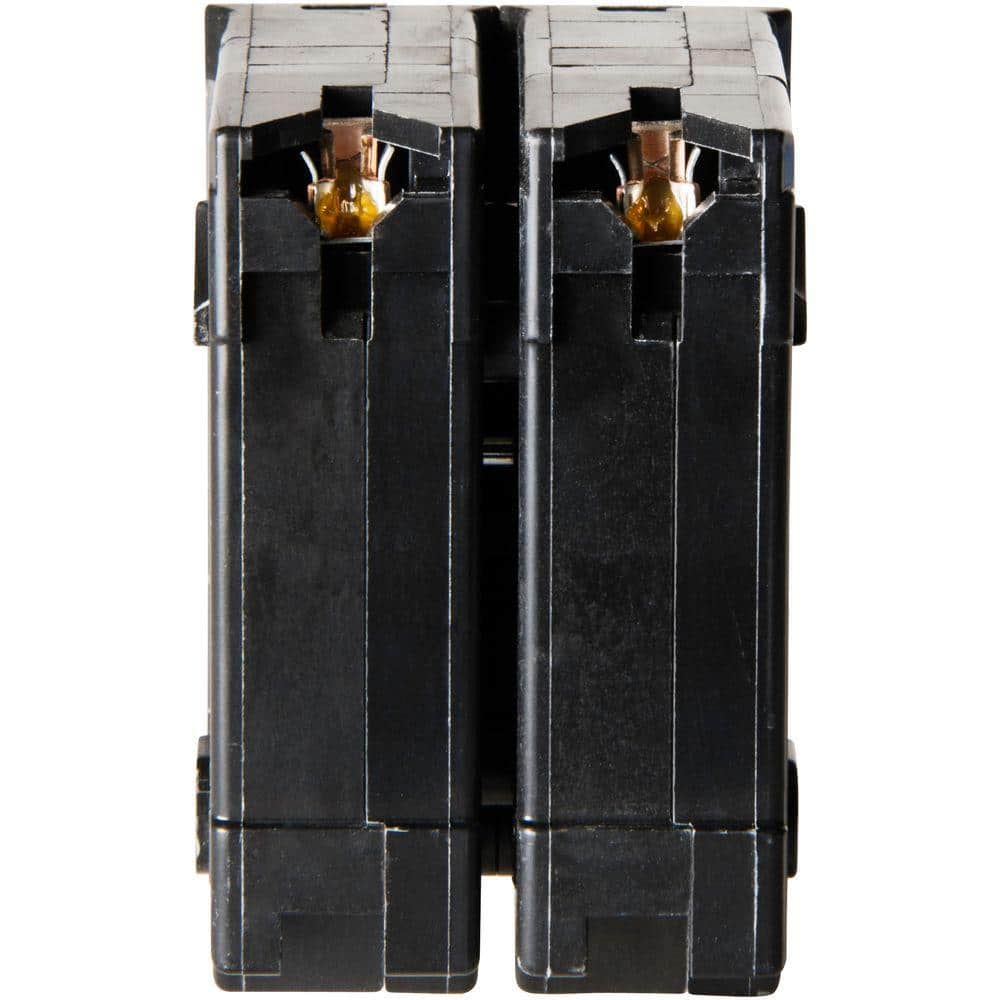

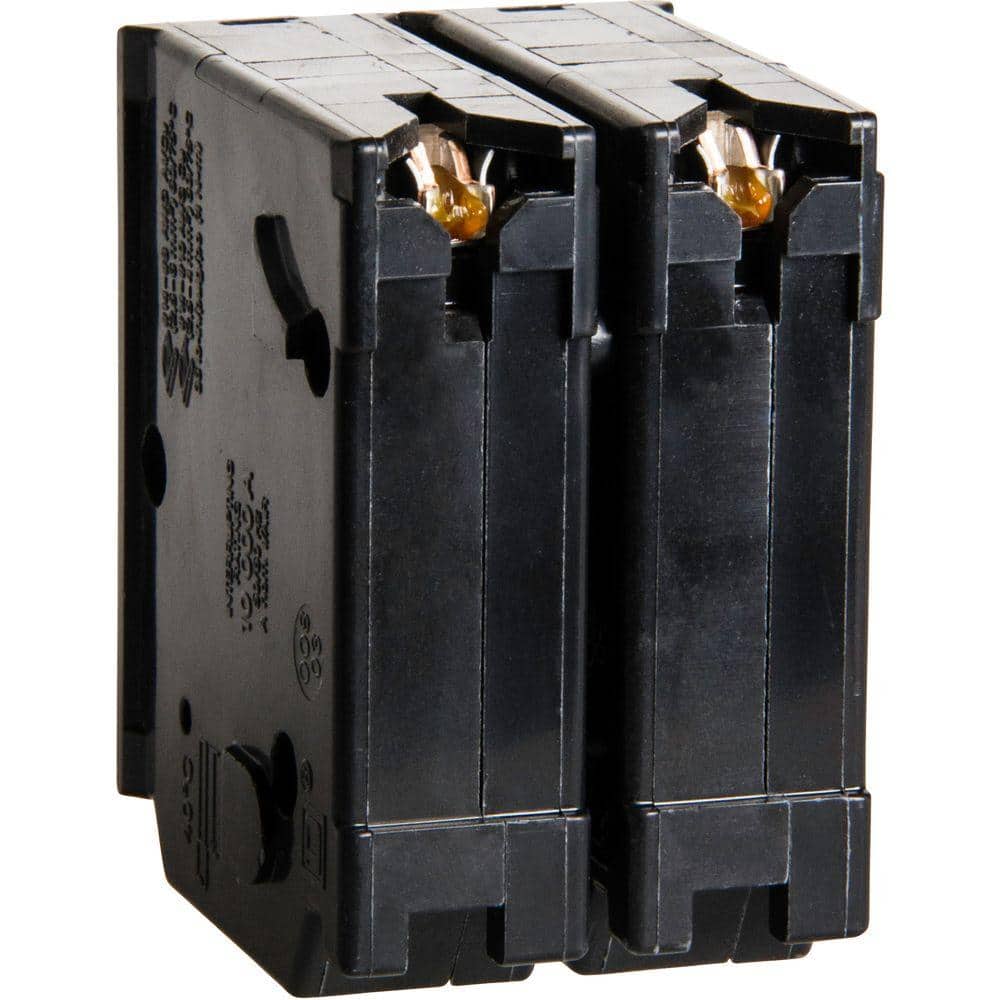

Square D Homeline 50-Amp 2-Pole Standard Trip Circuit Breaker, HOM250CP
Homeline 50A 2-Pole Circuit Breaker
The Square D Homeline 50-amp two-pole breaker delivers reliable overload and short-circuit protection for residential branch circuits. Designed for Homeline load centers and CSEDs, it features a thermal-magnetic trip unit and plug-on installation for quick, secure mounting.
Key Features:
- Homeline Compatibility: Fits Square D Homeline load centers and CSED devices with two spaces
- Thermal-Magnetic Protection: Standard trip unit safeguards against overloads and short-circuits
- 50A, 2-Pole Performance: Rated 120/240 VAC with 10,000 AIC interrupting capacity
- Easy Plug-On Install: Simple, secure mounting for fast panel upgrades
- UL Listed Reliability: Backed by a limited lifetime warranty on the load center installation
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard |
| Interruption Type | Standard Trip |
| Trip Unit | Thermal Magnetic |
| Maximum Amperage | 50 A |
| Poles | Double (2-Pole) |
| Voltage | 120/240 VAC |
| AIC Rating | 10,000 AIR |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Pack Size | 1 |
| Certifications | UL Listed, ANSI Certified |
| Product Weight | 0.7 lb |

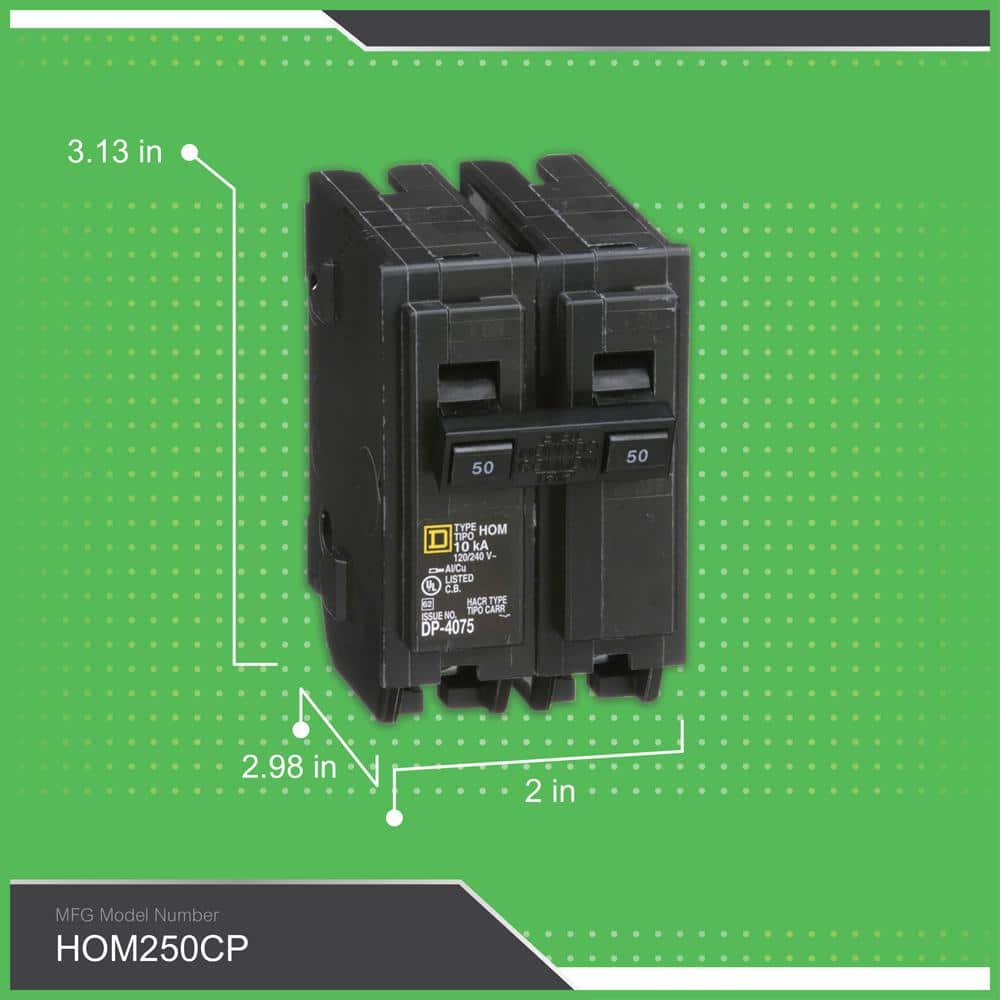

| Product Dimensions | 3.13 in H x 2.98 in D x 2 in W |
| Manufacturer Warranty | Limited lifetime warranty for the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all Square D panels?
A: It is designed specifically for Square D Homeline load centers and CSED devices; it will not fit QO series panels.
Q: What voltage and amperage is it rated for?
A: It’s a 2-pole, 50-amp breaker rated for 120/240 VAC with a 10,000 AIC rating.
Q: What type of trip mechanism does it use?
A: A thermal-magnetic, standard trip unit for dependable overload and short-circuit protection.
Q: How does it mount in the panel?
A: It uses a plug-on design for quick installation into Homeline panels with two adjacent spaces.
Q: Is it UL listed and warrantied?
A: Yes, it is UL Listed and carries a limited lifetime warranty for the Homeline load center in which it’s installed.
Quiet Confidence for Your Power Core
This compact Homeline breaker brings order and assurance to the hidden heart of your home—the electrical panel. Its crisp, architectural lines and dual-handle silhouette feel purposeful and refined. Pair it with a neatly labeled panel schedule for a clean, gallery-like utility space. Reliable power is the ultimate luxury, and this piece delivers it with understated grace.
Protect your circuits with proven Homeline reliability—add this 50A 2-pole breaker to your panel today.
